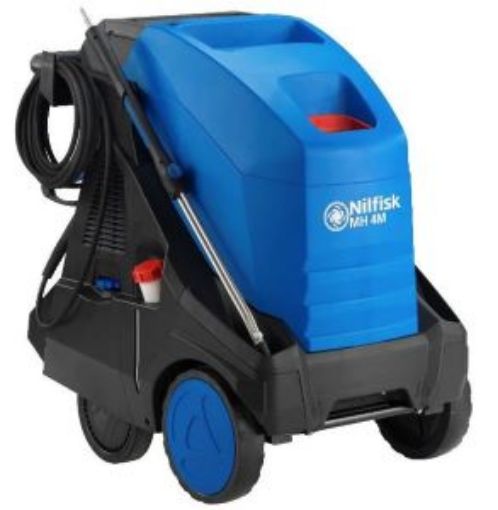

MH4M-100/680 PA UK Pressure Washer Hot Water Diesel Heater
The MH 4M series takes mid-range hot water high pressure washers to a new level, meeting the latest productivity demands in the market. The MH 4M is equipped with our industrial NA5 pump with 3 ceramic pistons and a high efficiency 4 pole motor. And the flow activated control system improves user comfort and handling as well as overall machine reliability.
Included Accessories
Tornado Nozzle with Indication Ring, Universal Lance, Spray Gun, High Pressure Female Coupling
- High efficiency 4 pole motors
- EcoPower boiler with EcoMode function
- Brass pump head 3 ceramic pistons
- Pressure activated unloader system
- Innovative design with 4 big wheels
- Easy to transport, can even be pushed/pulled across uneven surfaces
- Flow activated unloader system
- Oil tank and oil sight
- Low pump oil warning system
- Low fuel warning system
- Onboard diagnostics function
Specification
Pump Pressure (bar/MPa) 100/10
Cleaning impact (kg/force) 2.5
Pump (RPM) 1450
Power consumption (kW) 2.9
Voltage/phase/frequency/current (V/~/Hz/A) 230/1/50/13
Water flow Qmax/Qiec (l/h) 680/630
Water temperature (water/steam) (°C) 90/150
El cable (m) 5
Fuel consumption at ΔT=45°C (kg/h) 2.8
Fuel tank (l) 15
Detergent tank (l) A: 10 + B:
Nozzle size .0475
Max. inlet temperature (°C) 40
Ceramic pistons 3
Length x width x height (mm) 1010x700x1016
Weight (kg) 138
Recommended avg. hours of use per day 5
